Description
2-In-1 Mini Chamfering Machine
Power Source: COMPRESSED Air
Features:
Variable-speed
Compact
Lightweight

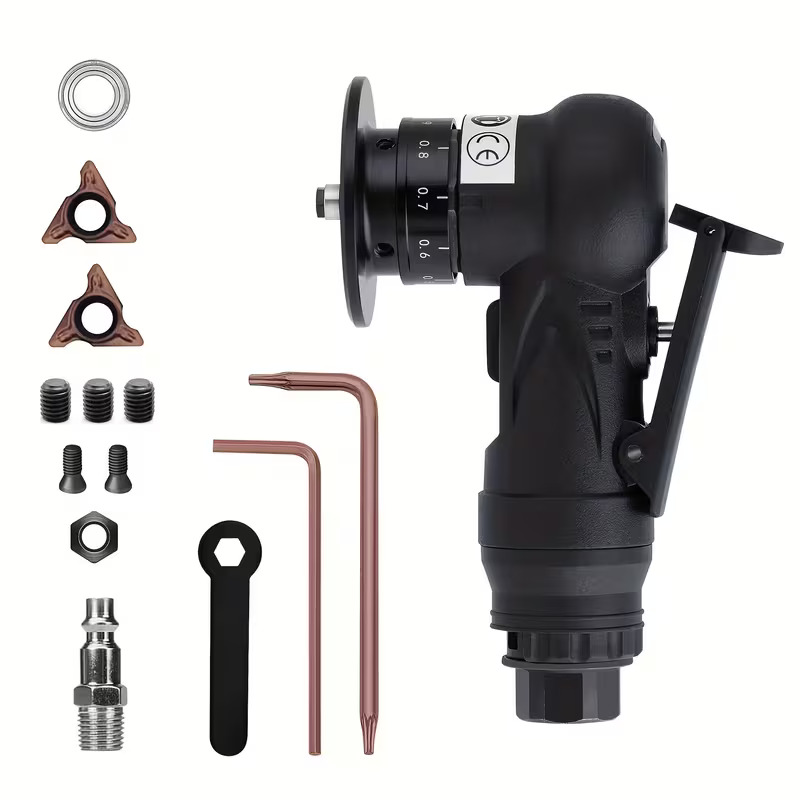

Included Components:
Comes as a Combo Set
Chamfer tool
Bearing×1
ARC insert blade×2
Wrench×2
Air plug
Adequate accessories for greater convenience. Use the matching wrench to easily adjust the chamfer size and replace the blade.
[Easy Operation]This 45-degree mini chamfering machine air tools has a new lightweight design, small and exquisite, smooth cut, high efficiency, Low vibration, very smooth cutting of carbon steel. Can be easily operated with one hand, and feels more comfortable.
Specifications
– Chamfering Range: 0-0.9mm (0-0.5mm recommended)
– Chamfering Capacity: C0.1-C2
– Depth: 0.1-0.9mm
– Chamfering Hole: ≧ 8mm
– Thickness of Chamfering Metal: >3mm
– Idle Speed: 30,000RPM
– Air Consumption: 0.4/min
– Air Inlet: 1/4 in
– Chamfering Range: 0-0.9mm (0-0.5mm recommended)
– Chamfering Capacity: C0.1-C2
– Depth: 0.1-0.9mm
– Chamfering Hole: ≧ 8mm
– Thickness of Chamfering Metal: >3mm
– Idle Speed: 30,000RPM
– Air Consumption: 0.4/min
– Air Inlet: 1/4 in
– Pressure: 0.4-0.6MPA
Rounding and bevelling is possible by changing the inserts (2 type inserts included). Suitable for various angles, such as straight edge chamfering, inner and outer round hole chamfering, and irregular chamfering for metal trimming and round R side.
Adjustable Speed and Angle
The portable air grinder deburring trimming chamfering tool 1-5 block valve adjustment thickened knob, freely adjust the gear speed you need. The chamfer size can be adjusted at will. The safety For Switch is used to prevent accidental touch to protect the user’s safety at all times.
