Description
Ideal for following templates, routing sign lettering and other tasks where the pattern is placed on top of the work piece. The top mounted bearings on these bits make them ideal for almost any application where the work piece is being grooved or routed out. Use in hand-held or table-mounted routers to rout hardwood, softwood, plywood or composites.
- Cuts all composition materials, plywoods, hardwoods, and softwoods
- Use on hand-held and table-mounted routers
- Freud Perma-SHIELD® Coating
Ideal For: template and pattern routing

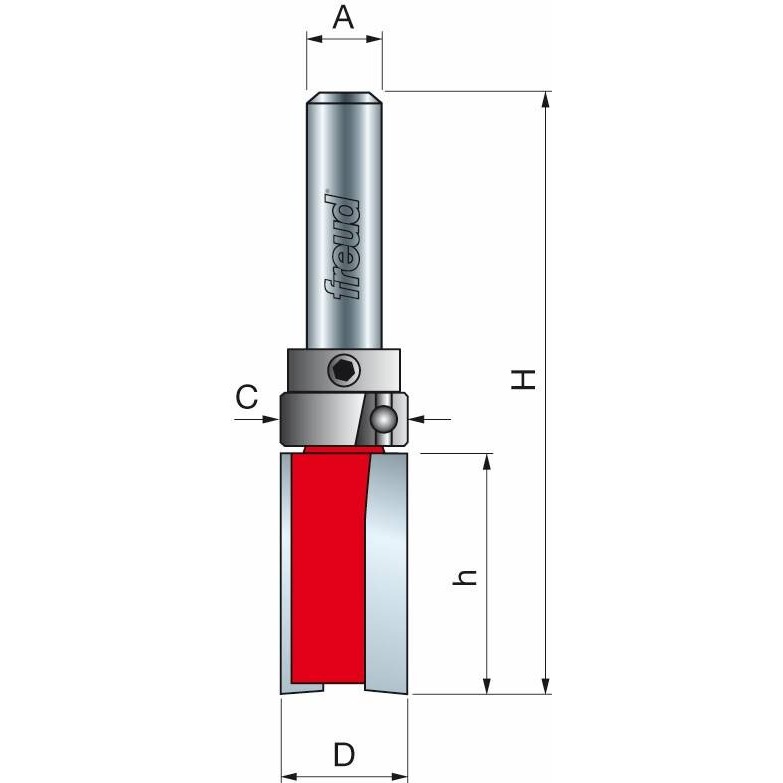

Technical Data
| BEARING DIA. (B) | 1/2″ 12.7mm |
| NUMBER OF CUTTERS | 2 |
| OVERALL DIA. (D) | 1/2″ 12.7mm |
| OVERALL LENGTH (H) | 2-5/8″ 66.68mm |
| SHANK DIA. (A) | 1/4″ 6.35mm |
| CARBIDE HEIGHT (H) | 1″ 25.4mm |
