Description

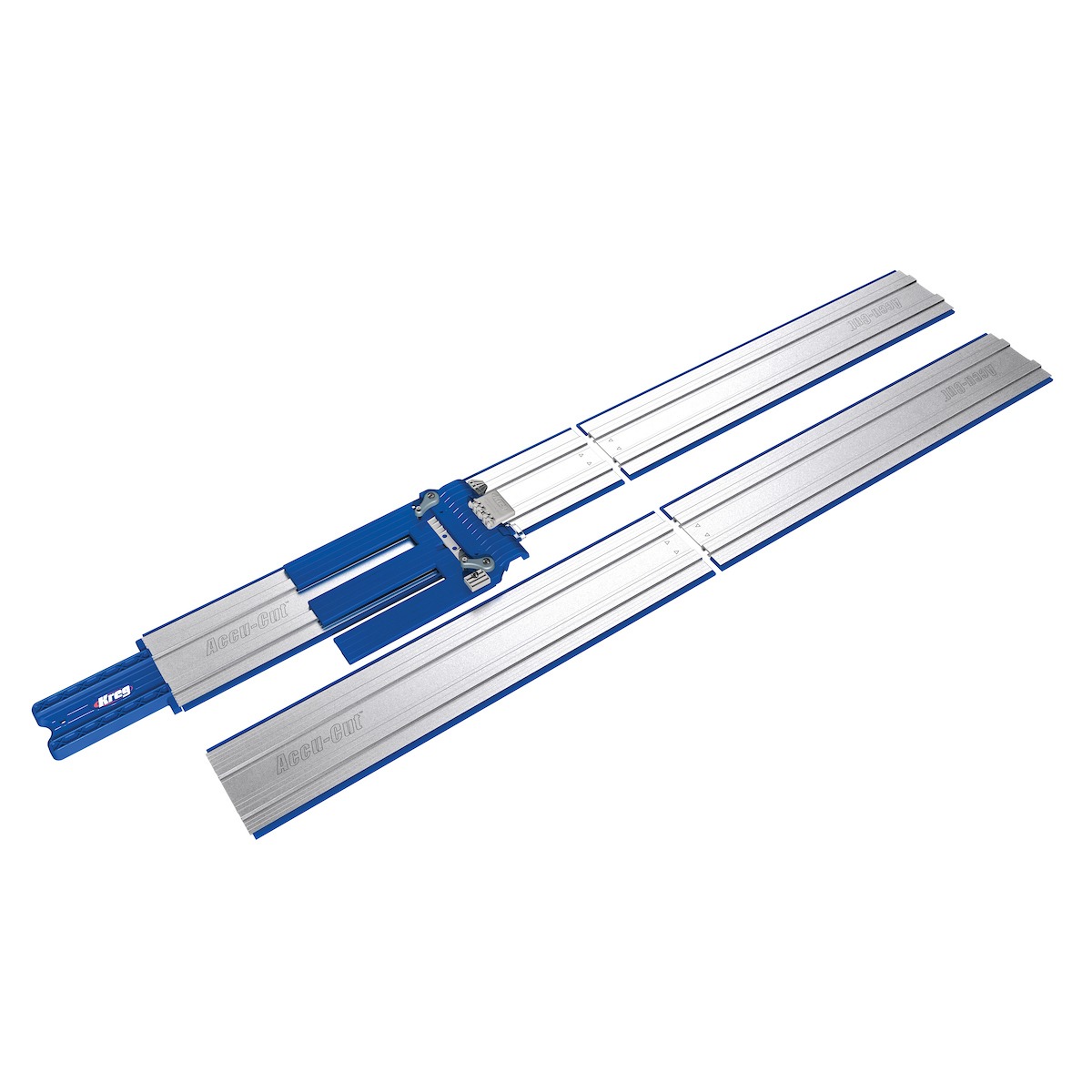

Start your projects with straight, accurate cuts without tear-outs with your circular saw and the Accu-Cut XL. After a simple set-up, you will achieve high accuracy with excellent controllability.
Highlights
- Longitudinal and cross cuts as well as angled cuts (up to 2540 mm) in plywood, MDF and boards
- Simply align the guide rail with your markings to achieve accurate cuts
- Thanks to the non-slip guide strips, you can fix the rail in place without the need for clamps
- Avoid tears thanks to specially developed strips that protect the workpiece during cutting
- The starting block facilitates the start of the cut by supporting the saw and enabling smooth use of the saw blade guard
- Almost all circular saws can be attached to the universal carriage, with right or left saw blade
Mounting
The carriage can be attached to all circular hand saws that allow the two clamping screws to be tightened on the front edge of the base plate.
Technical specifications
- Material: Impact-resistant polymer, aluminum, hard and soft PVC
Scope of delivery
- 1 x Universal saw carriage
- 1 x Starting block
- 4 x Guide rails 673 mm
- 6 x Guide rail connectors
- 8 x Anti-slip and anti-tear strips
- 1 x Instruction manual
