Description
Product information “Track Horse”
The “little” brother of the multifunctional KWS1000 workbench from Kreg awaits you with a range of clever solutions. It is not just a workbench, but can be extended and transformed into a workbench, a sawing station, a Kreg drilling station, a clamping table and many other possible applications in no time at all.
With the Kreg® work trestle, you can set up a stable working environment anywhere and turn any location into your individual workplace.
Highlights
- Can be extended with a second KWS500 or with the KWS1000 mobile workbench
- When used in pairs, the “Track Horse” work trestle from Kreg holds a weight of 997 kg
- Ideal for large and heavy work

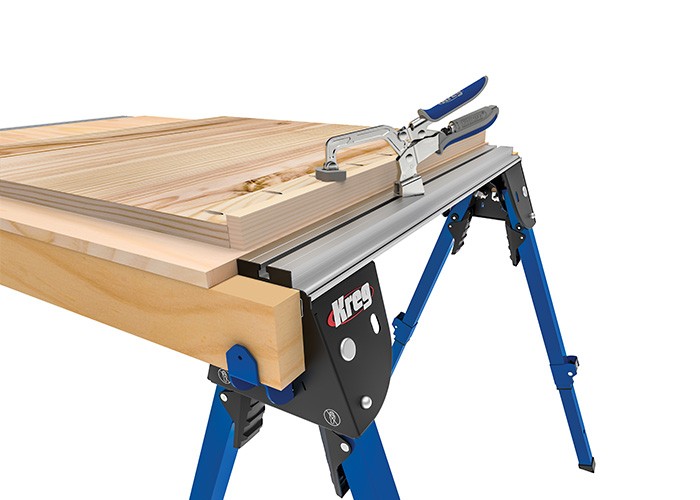

- Thanks to the Automaxx workbench clamp supplied, you can work safely on the KWS500
- The track also accommodates a sacrificial timber, which enables cutting without damaging the workhorse or saw.
- Thanks to the adjustable feet, the work bench can be set to six different working heights

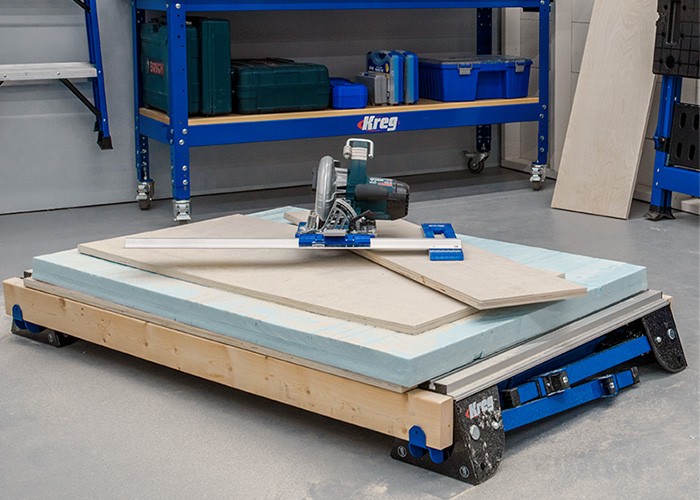

- The legs can also be folded without tools so that the work trestle can then be used at ground level

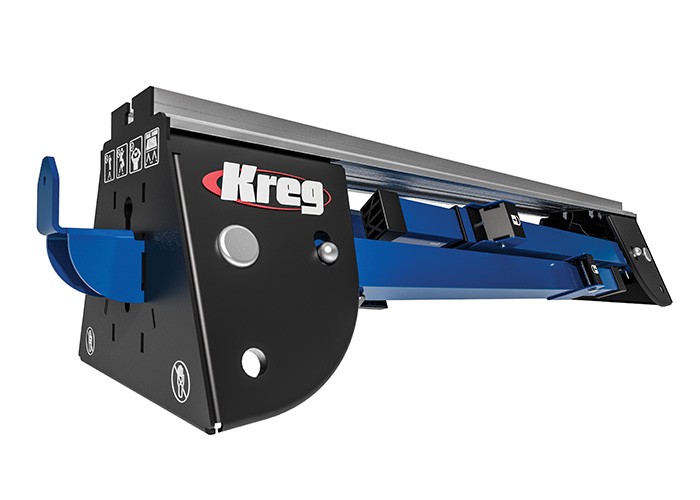

- The feet can be folded in completely, making the KWS500 particularly space-saving and easy to move
- When folded up, the work trestle is also very convenient to transport and stow away
Technical data
- Adjustable heights: 168 mm (folded legs), 626 mm, 804 mm (corresponds to the height of the KWS1000), 829 mm, 855 mm, 880 mm, 906 mm
- Dimension of upper aluminum rail (LxW): 800 mm x 66 mm
- Dimension of the groove (aluminum rail): 14 x 8 mm (suitable for screw M8 with SW13)
- Basic dimensions of assembled trestle (LxW): from 860 x 530 mm (position 1) to 910 x 745 mm (position 6)
- Load capacity: 498 kg per work trestle, 997 kg (when used in pairs)
- Construction: anodized aluminium profile rail, steel substructure and feet
- Compatible with: Mobile workbench KWS1000, second work trestle KWS500
- Dimensions (folded), (LxWxH): 805 x 210 x 175 mm
- Weight: 10,89 kg
Scope of delivery
- 1x Track Horse
- 1x Workbench clamp (KBC3)
- 2x Workpiece holder for table extension
- 2x Fasteners for sacrificial wood (shims incl. screws)
- 1x User Manual

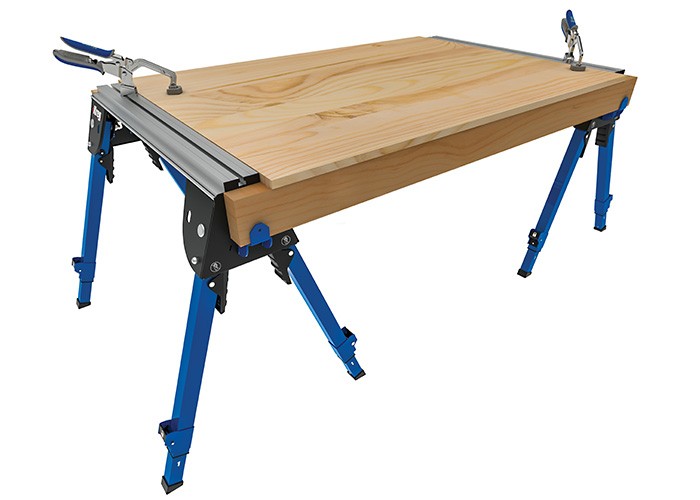

Note on extending with a second work trestle (KWS500) to create a worktable
- Squared timber measuring 38 x 89 mm can be clamped to the left and right of the trestles to create a support surface for a worktop.
