Description

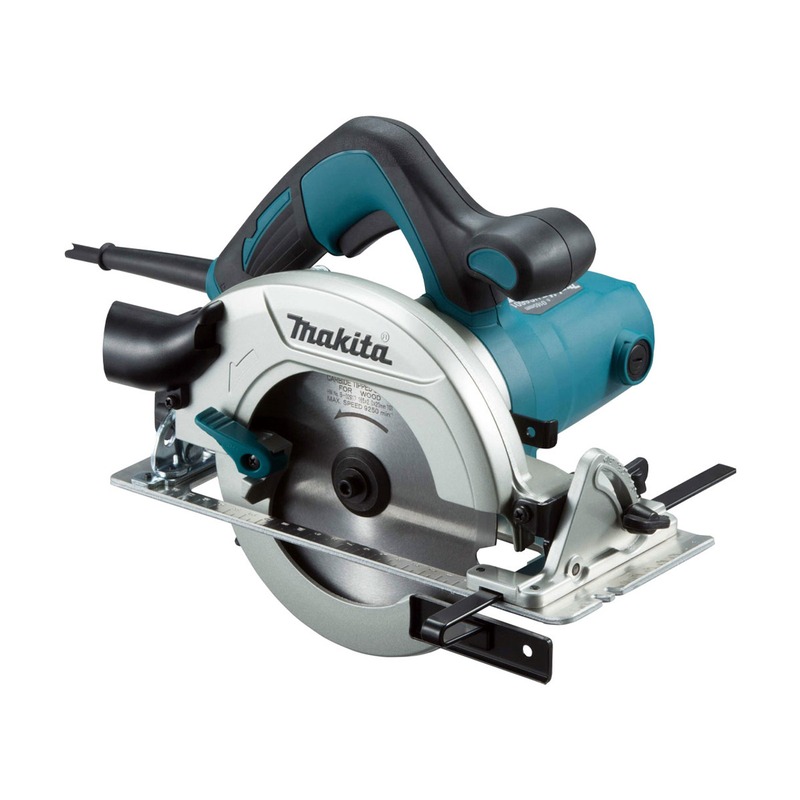

Makita HS6601 230v Circular Saw 1050w 165mm
1050 Watt; ø 165 mm
- Very compact and exceptionally light in weight (3.6 kg) for a 165 mm saw.
- Miter cuts up to 45° possible.
- Fits on a guide rail. Use the adapter. (197462-2)
- Simple depth adjustment using a lever.
- Equipped with soft grip for more control and comfort.
- Dust-free working is possible thanks to the vacuum cleaner connection.
Technical data
- Saw blade diameter 160 – 165 mm
- Max. sawing capacity (height) 0° 54.5 mm
- Max. sawing capacity (height) 45° 37.5 mm
- No-load speed 5200 min-1
- Power consumption 1050 Watt
- Softgrip yes
- Axle lock yes
- Cable length 4.0 m
- Dimensions L x W x H 296 x 232 x 243 mm
- Weight (EPTA) 3.4 kg
- Sound pressure level (LpA) 87 dB(A)
- Sound pressure level (K) 3 dB(A)
- Vibration ah wood sawing 2.5 m/s²
- Vibration (K) wood sawing 1.5 m/s²
- Volt (voltage) 230 V
- Tilt L/R 0 – 45 º
- Material protective cover Aluminum
- Sole material: Aluminum
- Saw height 54.5 mm
- Saw blade axle hole 20 mm
Standard Scope of Delivery
- Width guide 164095-8
- Saw blade wood 165x20x2.0 10T 20g B-02917
- Allen key 783217-7
- Dust extraction nozzle 196520-1
