Description
An accurate high-capacity mitre saw with a 1 800 W motor for professional use. The dual slide system reduces the need for space, enabling the machine to be placed by a wall. The bevel lock is located at the front of the saw. Equipped with an excellent dust removal function and a built-in laser that indicates line-of-cut.
Capacity 90° Max. 107 x 363 / 92 x 382 mm
kerf thickness of the saw blade 3,2 mm
Continuous Input Power 240V 1800 W
No load speed 3200 min-¹
Capacity 45° 107 x 255 / 92 x 268 mm
Capacity 45° left 71 x 363 / 61 x 382 mm

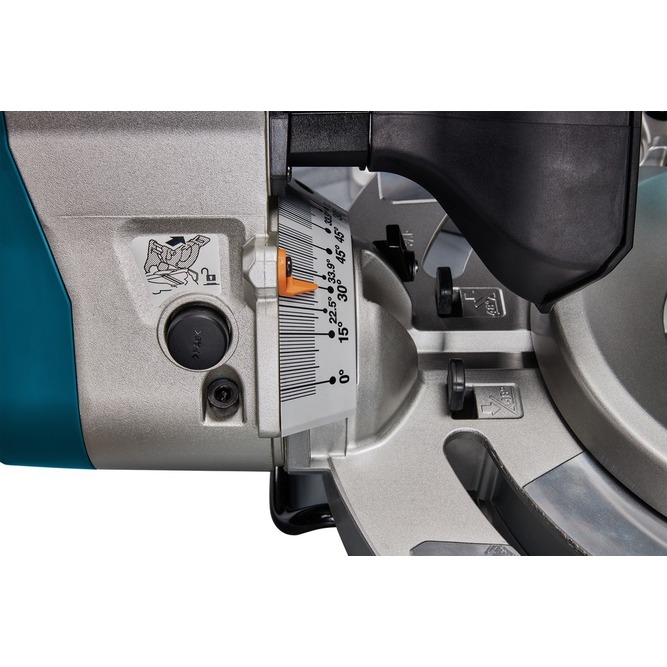

Bevel capacity right 45° 54 x 363 / 44 x 382 mm
Max. Bevel Range (Left) 48 / 48 º
Max. Mitre Range (Left) 60 / 60 º
Blade Diameter 305 mm
Bore Size (Arbor Diameter) 30 mm
Power Supply Cord 2,5 m
Sound Power Level (LWA) 100 dB(A)
Rail-forward design enables to be placed against a wall for maximising work space • Electric brake for maximum productivity and increased operator safety • Laser marker allows easy and accurate alignment with ink line • Large turn base supports workpiece securely for increased stability • Oversized trigger switch for better fit, added comfort and easier operation
