Very high-quality precision miter gauge system from Kreg | For routing and sawing tables - including oscillating fence

Highlights

• Fence for angle milling and cutting
• High-quality and very accurately manufactured fence
• Side stop made from robust aircraft aluminum
• Scale with fine adjustment: 1/10 degree precise, adjustable angles
• Quick-adjustable angle stops at 0°, 10°, 22.5° and 45° using a brass knob
• Includes oscillating fence that enables repetitive routing and cutting
• Swing stop with magnifying glass for better visibility and more accurate setting of the scale (inches)

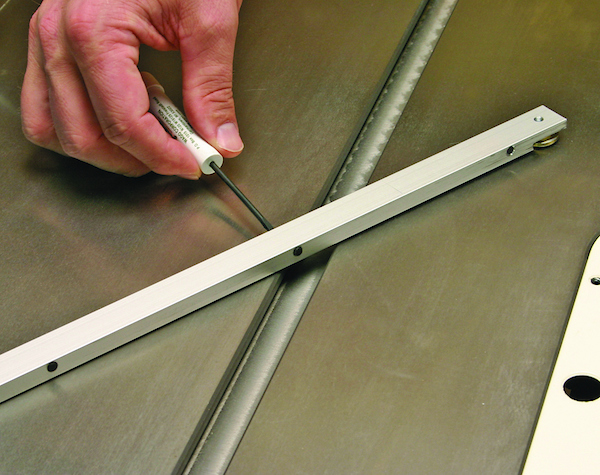

• 3/4" (19 mm) wide aluminum rail with 5 separate adjustment screws for optimal guidance

Technical data

• Stop rail dimensions (L x H): 610 x 68 mm
• Guide rail dimensions (L x W x H): 610 x 19,05 x 9,5 mm
• Inch scale on the stop rail
• Precise angle adjustment to 1/10 degree

The angle fence is directly compatible with the Kreg router table PRS1045, as well as all other tables with the standard U-profile of 19 mm (3/4") width and 9,5 mm (3/8") height.

Note: The Precision Miter Gauge System is only suitable for 19 mm wide grooves.

Scope of delivery

• 1x Miter Gauge
• 1x 610 mm Fence with scale
• 1x Swing Stop with Precision Lens Cursor
• 1x Self-adhesive measuring tape
• 1x User Manual
