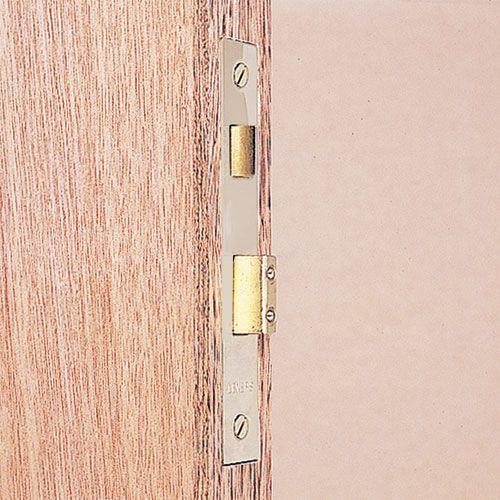

Jig for mortice locks and latches - for faceplates up to 250 long | adjustable for locks of all common sizes | or for any other type of rectangular recess

Milling template for rectangular recesses of 40 mm width - 260 mm length

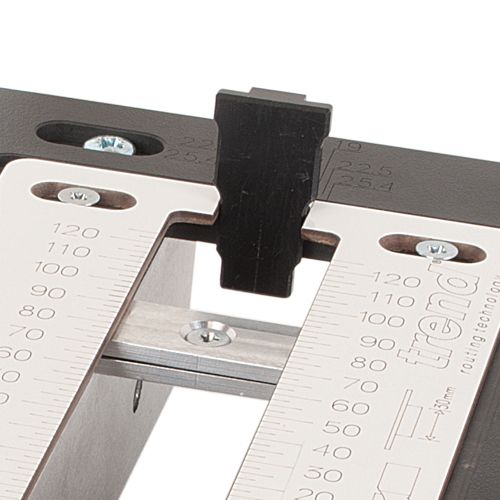

The LOCK JIG doorschlossmilling device is made of impact-resistant plastic with variable adjustment possibilities. Simple and fast removal of the recess in the front panel of door locks - including 2.5mm scaling and quick adjustment. Suitable for doors with min. 30 mm to max. 80 mm thickness.

THE JOKER:

The device with ALU stop is also suitable for finger holes, recessed grips, angular recesses Routingof all kinds, hinges, mortises, etc. thanks to the infinitely variable Size adjustment.

Procedure:

• Fix longitudinal guide and stopper for adjusting length and width
• Positioning on the workpiece using the stop on the underside
• Use of a 30 mm copying sleeve and 12 mm milling cutter (ideally)

Bottom line: Simple. Fast. Practical. An enormous time saving in every respect.

Features & benefits

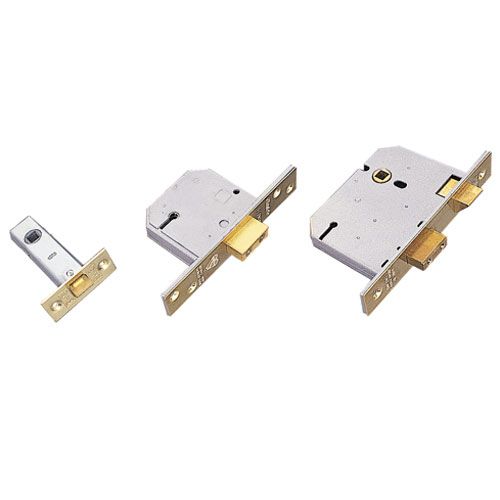

• Infinitely adjustable sliding plates and stops for mortice and faceplates from 30mm up to 250mm long, ideal for use with obscure sized locks as well as all standard locks and latches.
• For use in a 1/2in capacity router with 80mm plunge capacity fitted with a 30mm guidebush and 12mm cutter.
• Engraved on underside to allow fast, accurate set up for common door widths of 35mm, 40mm, 44mm and 54mm.
• The infinite adjustment range makes it the ideal jig for fitting the mortice positions for multi point lock strips into wooden doors.
• With its adaptable sliding plate and stop adjustments it can be used with different guidebush diameters and straight cutters for general mortice work in construction projects.
